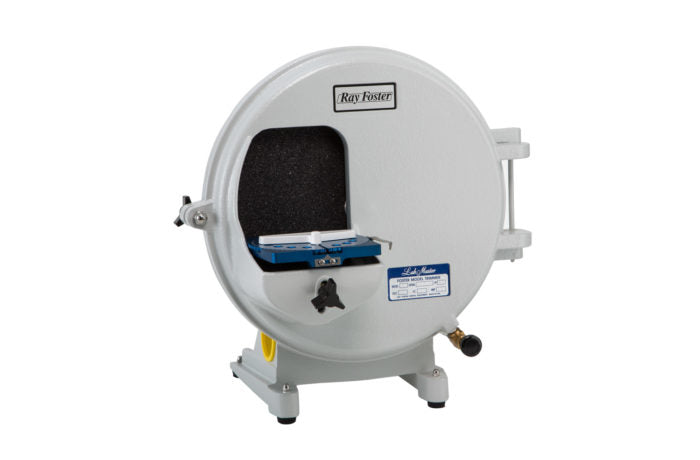

Ray Foster MT15D Orthodontic 12" Model Trimmer with Diamond Wheel

Product Description

Ray Foster MT15D: Orthodontic 12" Model Trimmer with Diamond Wheel. Equipped with the Orthodontic Angulating Work Table, the Ray Foster 12" Model Trimmer speeds trimming of study models, and produces accurate and attractive results. The Orthodontic Angulating Work Table, made from hardened anodized aluminum for a long, accurate work life, is calibrated for precise positioning and trimming of models. Accessories supplied with the Orthodontic Model Trimmer include Vertisquare, Angle Guide, and 70mm Adjustment Gauge.

Model MT15

Specification

• 1/2 HP motor, with 1.25 service factor producing .625 HP actual power
• 12" dia., 1/4" thick grinding wheel
• 5-1/4" wide, 5" high cutting surface
• 17" high, 17" wide, 16" deep
• 115 volt, 60 Hz standard
• 230 volt, 50/60 Hz optional for export
• Shipping weight - 49 lbs
